Plotting output from code profilers
GCPy contains functions to plot output from the gprofng and Intel VTune code profilers, which can help you to identify computational bottlenecks (aka “hotspots”) in GEOS-Chem Classic, GCHP, and HEMCO.
gprofng
This example demonstrates how you can plot function profiles generated by the gprofng performance profiler.
Source code
Script location: gcpy/profile/gprofng_functions.py
Usage
First, generate a function profile with gprofng:
$ gprofng collect app /path/to/executable/file
where /path/to/executable/file is the path to the program that
you wish to profile. For example, to profile GEOS-Chem Classic, you
would use this command:
$ gprofng collect app ./gcclassic
Gprofng will send profiling output to a folder named
test.N.er, where N is an integer index and er
stands for “experiment record”.
Next, send function profiling information to a file:
$ echo functions | gprofng display text test.N.er > functions_profile.txt
Here is a sample functions_profile.txt for GEOS-Chem Classic.
(gp-display-text) Functions sorted by metric: Exclusive Total CPU Time
Excl. Total Incl. Total Name
CPU CPU
sec. % sec. %
508.406 100.00 508.406 100.00 <Total>
62.594 12.31 62.594 12.31 __unitconv_mod_MOD_convertbox_kgm2_to_kg
61.653 12.13 61.653 12.13 __unitconv_mod_MOD_convertbox_kg_to_kgm2
58.401 11.49 58.401 11.49 <static>@0x7696c (<libm-2.28.so>)
46.833 9.21 64.075 12.60 __tomas_mod_MOD_mnfix
41.609 8.18 41.609 8.18 __gckpp_linearalgebra_MOD_kppdecomp
29.941 5.89 29.941 5.89 __gckpp_linearalgebra_MOD_kppsolve
26.609 5.23 26.609 5.23 __gckpp_function_MOD_fun_split
... etc ...
The Excl. Total (total Exclusive Time) metric is useful for identifying computational bottlenecks. This represents the amount of time spent in a subroutine, excluding time spent in any subroutines called by the subroutine.
Make sure that you have specified the proper Matplotlib backend for your system. Then run the example script with the following command:

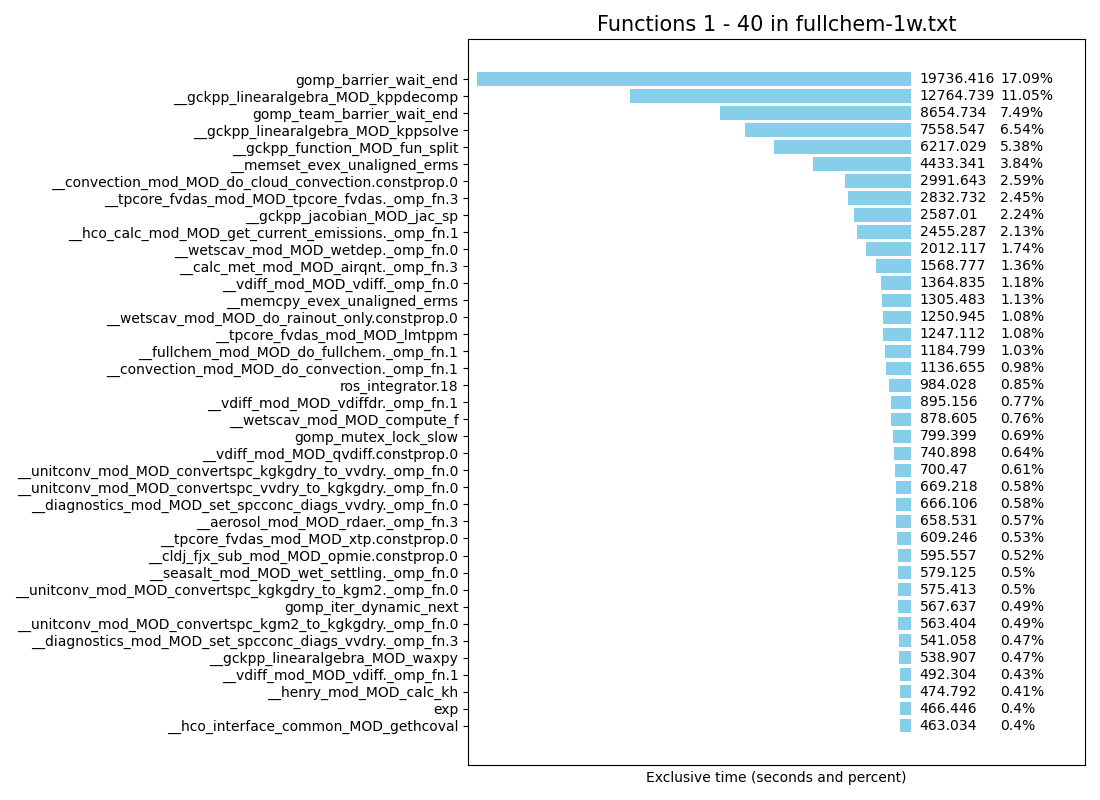

$ python -m gcpy.profile.gprofng_functions functions_profile.txt 1 40
This will create a plot similar to that shown above, which shows the top 40 functions sorted by exclusive time. To see the next 40 functions sorted by exclusive time, use this command:
$ python -m gcpy.profile.gprofng_functions functions_profile.txt 41 80
etc. You should display fewer than 50 functions in order to prevent the time and percent labels from overlapping.
Intel VTune
These examples demonstrate how you can display output from the Intel VTune profiler in an easy-to-read format.
Source code
Script locations
Usage
First, use Intel VTune to collect information about hotspots:
$ vtune -collect hotspots -- /path/to/executable/file
where /path/to/executable/file is the path to the program that
you wish to profile. For example, to profile GEOS-Chem Classic, you
would use this command:
$ vtune -collect hotspots -- ./gcclassic
Intel VTune will send profiling output to a folder named
rNNNhs, where NNN is a 3-digit integer
(e.g. r000hs, r001hs, .etc).
List hotspots by function
Generate a hotspot report that shows the amount of CPU time that each function takes to execute:
$ vtune -report "hotspots" \
-result-dir "rNNNhs" \
-format "csv" \
-group-by "function" \
-report-output "hotspots.by-function.csv"
The report will be in comma-separated-variable (CSV) format, using the
horizontal tab (\t) character as the separator. Use this
command to display the list:
$ python -m gcpy.profile.vtune_list_hotspots -f hotspots.by-function.csv
You will see output similar to this:
Rank Function CPU Time [s]
1 gomp_simple_barrier_wait 24632.527261
2 gomp_team_barrier_wait_end 9641.441448
3 do_spin 2989.702093
4 do_spin 1192.336839
5 __gckpp_integrator_MOD_forwardeuler 1127.055528
6 __carbon_gases_mod_MOD_chem_carbon_gases._omp_fn.1 867.404384
7 __hco_calc_mod_MOD_get_current_emissions._omp_fn.1 746.427654
8 gomp_iter_dynamic_next 459.442222
9 gomp_mutex_lock_slow 386.295001
10 pow 374.182018
11 __memmove_evex_unaligned_erms 281.754054
12 __memset_evex_unaligned_erms 219.870543
13 gomp_team_end 210.792107
14 getvertindx 199.950757
15 __hco_calc_mod_MOD_get_current_emissions._omp_fn.0 196.184759
16 gomp_team_barrier_wait_final 177.007387
17 apply_scale_factor 171.323264
18 get_value_from_datacont 160.885377
19 __hco_calc_mod_MOD_hco_calcemis 138.678973
20 __calc_met_mod_MOD_airqnt._omp_fn.1 118.066415
21 do_cloud_convection 112.604329
22 get_current_emissions 103.695072
23 gomp_loop_dynamic_start 100.352473
24 __gckpp_function_MOD_fun 99.050549
25 __hco_tidx_mod_MOD_tidx_getindx 96.415549
26 __vdiff_mod_MOD_vdiffdr._omp_fn.0 93.715739
27 expf64 93.333107
28 gomp_simple_barrier_wait 89.524049
29 fzppm 87.241202
30 lmtppm 82.941413
Press ENTER to continue, or Q/q then ENTER to quit >>>
Tip
Use the -l argument to display a different number of
lines per screen. For example:
$ $ python -m gcpy.profile.vtune_list_hotspots -f hotspots.by-function.csv -l 40
will display 40 lines per screen, etc.
List hotspots by source code line
You may also generate a hotspot report that shows the module name and line number of each hotspot:
$ vtune -report "hotspots" \
-result-dir "rNNNhs" \
-format "csv" \
-group-by "source-line" \
-report-output "hotspots.by-line.csv"
The report will be in comma-separated-variable (CSV) format, using the
horizontal tab (\t) character as the separator. Use this
command to display the list:
$ python -m gcpy.profile.vtune_list_hotspots -f hotspots.by-line.csv
You will see output similar to this:
Rank Source File Source Line CPU Time [s]
1 simple-bar.h 60 24722.051310
2 bar.c 112 9435.561971
3 wait.h 56 3215.631958
4 [Unknown source file] [Unknown] 1276.917637
5 gckpp_Integrator.F90 186 1122.006955
6 carbon_gases_mod.F90 536 833.929713
7 hco_calc_mod.F90 1248 636.648621
8 wait.h 56 499.983260
9 iter.c 197 420.879619
10 mutex.c 41 345.307192
11 wait.h 57 331.221428
12 team.c 956 209.822250
13 bar.c 112 203.079367
14 wait.h 57 182.085065
15 bar.c 133 176.957387
16 hco_calc_mod.F90 2216 138.241661
17 hco_calc_mod.F90 1651 123.538416
18 loop.c 130 98.411270
19 gckpp_Function.F90 67 95.191678
20 futex.h 123 90.769803
21 hco_calc_mod.F90 1418 74.508612
22 hco_calc_mod.F90 1541 70.619145
23 hco_tidx_mod.F90 366 67.885338
24 hco_calc_mod.F90 1019 67.284800
25 mixing_mod.F90 780 62.574882
26 hco_calc_mod.F90 1475 60.544203
27 calc_met_mod.F90 697 57.911982
28 hco_interface_common.F90 165 57.280402
29 history_mod.F90 2670 54.087905
30 hco_calc_mod.F90 1046 53.123816
Press ENTER to continue, or Q/q then ENTER to quit >>>
Comparing hotspots
Let’s say you have used Intel VTune to generate hotspot reports for runs before and after a given fix was applied. You can compare a hotspot by name to see how much time it took to execute in both runs. Use the following command:
python -m gcpy.profile.vtune_compare_hotspots \
--ref-file "hotspots.by-function.before.csv" \
--ref-label "Before" \
--dev-file "hotspots.by-function.after.csv" \
--dev-label "After" \
--hotspot-name "get_current_emissions"
You will then see output similar to this:
Hotspot Before After Abs Diff % Diff
get_current_emissions 113.13094 103.69507 -9.43587 -8.34
Plotting hotspots
Make sure that you have specified the proper Matplotlib backend for your system. Then run the example script with the following command:
$ python -m gcpy.profile.vtune_plot_hotspots hotspots.by-function.csv 1 40
or
$ python -m gcpy.profile.vtune_plot_hotspots hotspots.by-line.csv 1 40
This will show the first 40 hotspots plotted in decreasing order of CPU time, similar to the example shown in our gprofng section above.
